Enhance accuracy, automation, and productivity with Zhouxiang’s sophisticated H Beam Welding Line. Tailored to suit businesses in heavy industry, structural steel processing, and large-scale fabrication, our solution guarantees unrivaled responsiveness and dependability for the most challenging welding tasks.

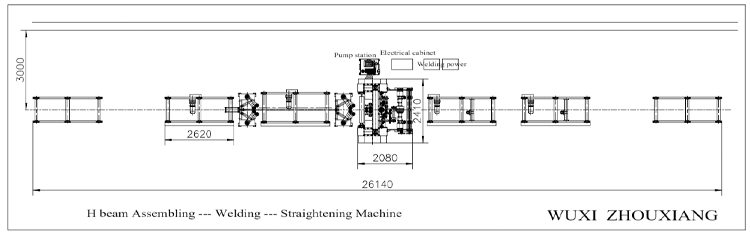

The H Beam Welding Line that we have incorporates assembly, welding, turning, and straightening operations which provides complete automation from beginning to end.
Operations performed by a human are eliminated as web and flanges are usefully assembled and aligned.
Beams are accurately flipped for multi-seam welding at 90° or 180° angles.
It takes up 2/3 less floor space than traditional production lines and only requires 2 people to operate.
Sewn seams are of minimal distortion and flawless due to submerged arc welding.
Flexibility to set parameters within defined limits is available for adjustment for various beam sizes.
Enhanced focus ensures maximum accuracy for the assembly and welding of beams.
| Model | PHJ0815 | PHJ0820 |
|---|---|---|
| Web height | 160~1500mm | 200~2000mm |
| Web thickness | 6~16mm | 6~30mm |
| Flange width | 150~800mm | 200~800mm |
| Flange thickness | 6~25mm | 8~40mm |
| Work-piece length | 6000~15000mm | 6000~15000mm |
| Assembly and welding speed | 0.35~3m/min | 0.35~3m/min |
Explore what our satisfied customers are saying about Zhouxiang’s H Beam Welding Line:
H Beam Horizontal Production Line Top H Beam Horizontal Production...
Read More
Top Heavy-Duty H Beam Production Line Manufacturers and Suppliers in...
Read More
Top Light-Duty H Beam Production Line Manufacturers and Suppliers in...
Read More
H Beam Production Line Top H Beam Production Line Manufacturer...
Read MoreOur blogs shall provide you with all the current invaluable information within the industry such as the best practices, advanced strategies, fresh concepts, and much more.
H-beam welding is one of the backbones of today s steel shops. It steadily gives buildings the strength they need when winds and crowds push hard against them. Production...
Manufacturers have a secret weapon for fast, screw-free metal joins: laser beam welding. This process fires a narrow beam of light onto a workpiece, melting the edges together in...
In manufacturing, the power of precision coupled with strength is difficult to find, except with techniques such as laser welding, especially electron beam welding (EBW). This advanced horse powered...
As you may already know, welding is a quite a bit involved, and selecting the correct equipment is fundamental to its success. Whether you are a professional in the...
Find out how Zhouxiang’s H Beam Welding Line can optimize your fabrication workflow. Contact us for additional information, bespoke options, or a comprehensive quotation.
A: An h-beam welding line is a specific production line integrated with several machines for the assembly and welding of h-beams. Both structural steel components and h beams are of an “H” shape. The line consists of different stations, such as the assembly and welding stations, as well as control units for managing the entire process.
A: The h beam assembly process starts by taking individual h beam flange and web parts and combining them into a fully h beam shaped component. complete with flange straightening and flange welding to make certain that the h-beam possesses desirable strength characteristics.
A: An h-beam line requires the welder to operate machines and personally supervise the welding to ensure quality. While automation can limit the amount of work that needs to be done manually, skilled welders are crucial for maintaining the desired standards and for resolving any issues that may arise with granular automation.
A: Yes, While many h-beam welding lines lack flexibility, a versatile design exists which allows the adaptability for other types of beams including box beams. However, some settings and configurations need to be changed from the assembly fixture and the welding production line to suit different profiles of the beams.
A: With H beam welders, the single-arc and double wire welding methods are advanced technologies which they often employ. These methods increase the productivity and quality of the weld by reducing the weld time with better penetration.
A: Various manufacturers and suppliers actively deal with h-beam welding lines, especially from China. These suppliers offer complete packages that consist of h-beam welding machines, assembly cells, custom control systems, and even h-beam welding machine automation tailored to specific production requirements.
A: While choosing a welding line for h-profile steel, parameters like production volume, workstation tolerances to various beam dimensions, efficiency of the assembly machine, and the type of welding machine technology used for h-profile steel shall be taken into account. Alongside these considerations, the market’s perception as well as the after-sales support from the supplier and the manufacturer are essential for reliable long-term utilization.
A: Today’s h-beam welding lines incorporate advanced technologies that apply the use of computers to regulate the welding operations in real time. These computer control systems increase accuracy and consistency in production quality as well as ease in operational adjustments during production.
