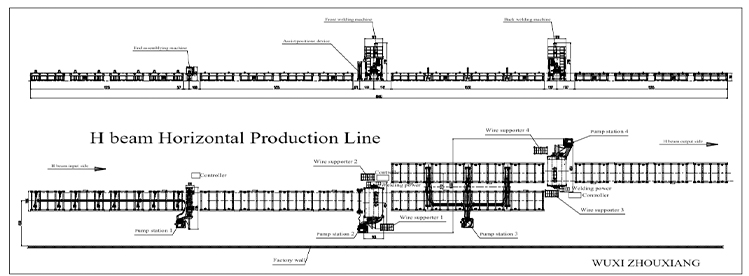

This automated production line proficiently assembles and welds H beams with minimal deformation, particularly advantageous for lighter H beams. It consists of an end assembly machine, front and back welding machines, an overturning machine, and conveyor rollers.
Enhance H-beam assembly and welding with the Zhouxiang H Beam Horizontal Production Lines’ steamlining features. Reduce deformation, improve quality.
Streamlined systems guarantee rapid, low-human-effort machinery output.
Allows for variable and light duty H-beam configurations.
Less expensive to maintain and operate as a result of a robust structure.
Quality-focused design results in minimum downtime and enhanced consistency.
Responsive to different production processes within configurable production systems.
Improves productivity by 1.5x over traditional methods.
| Parameter | Value |
|---|---|
| Web Height Range | 300–1500mm |
| Web Thickness Range | 3–12mm |
| Flange Width Range | 150–500mm |
| Flange Thickness Range | 5–20mm |
| Welding Speed Range | 0.3–1.9m/min |
| Work-piece Length Range | 4000–15000mm |
| Maximum Work-piece Weight | 4000kg |
| Main Machine Power | 13.4KW |
Read reviews and testimonials from clients who successfully increased their production efficiency using our state-of-the-art H-beam processing equipment.
Welding Robot Top Welding Robot Manufacturer and Supplier in China...
Read More
Top Heavy-Duty H Beam Production Line Manufacturers and Suppliers in...
Read More
Box Beam Production Line Top Box Beam Production Line Manufacturer...
Read More
Top Light-Duty H Beam Production Line Manufacturers and Suppliers in...
Read MoreStay On Top Of The Industry By Following The Blog For The Most Recent Updates, Strategies, Practices, Tips, Innovations, And Useful Information Of The Field.
Streamlined efficiency is the heartbeat of contemporary industry, and nowhere is this more prominent...
In many engineering and construction projects, the horizontal beam is an essential part which...
Transformations within the construction industry stem from relentless pursuits—efficiency, sustainability, precision, and environmentally sustainable...
In industrial fabrication, achieving both precision and efficiency is indispensable in delivering results of...
Enhance your H-beam manufacturing with Zhouxiang H Beam Horizontal Production Line. Get in touch for your bespoke business quotation. Streamlined operations, unparalleled accuracy, and competitive pricing consolidated into one ingenious solution.
A: An h beam horizontal production line is a systematic H Beam fabrication; it incorporates various activities like assembling and welding so that the produced h beams can be utilized in construction and engineering activities.
A: The h beam horizontal production line utilizes a series of machines to form the final h beam by processing the raw steel materials through multiple stages like cutting, assembling, and welding. The production line is composed of multiple modules which are synchronized and function together to produce a single h beam H Beam with the highest precision and replication.
A: With the horizontally placed welding stations, the operators can easily move and position the large beams during the welding process. Other benefits of a horizontal h beam welding line includes better production rate, dignified quality of the welds, and decrease in materials lost.
A: Yes, the light duty h beams ih beam horizontal production line can be modified to meet almost any demand. It is even possible to construct light duty h beams and other, more complex structures. As long as there is adequate production volume, the systems can be tailored to various beam sizes.
A: In addition to submerged arc welding, the production line features several other welding methods such as single arc double wire welding . These welding processes will guarantee adequate mechanical strength while enabling the production of h beams in a continuous fashion as well as fulfil the strength requirements of h beams.
A: How much work can be done with an h beam horizontal production line depends on what processes and what features are included in the system. An advanced line is capable of working several tons of H-beam products in the continuous mode already in one day in large quantities.
A: Inspections of welded h beams are done through various quality control inspections that include checking every stage of the welding, both before and after. Quality standards are maintained during the whole production cycle by having constant supervision of factors like welding heat, joint design, and materials used.
A: Other than cutting machines, assembling stations and inspection systems, machines such as submerged arc welding equipment are also essential to h-beam line as they serve as the welding machines. All these components are crucial to the production line’s efficiency and functionality.
A: Major parts for h beam production include h beam flange plates, web plates and other steel products made from structural steel plates. These materials are critical in meeting the required standards in construction which ensures durability and strength when used.
